Westinghouse Linear TLED Light Bulbs



Energy Saving, Environmentally Conscious, Long Life

  • Up to 56% energy savings over linear fluorescents - instant savings!
  • Mercury-free LEDs lower disposal costs and are an environmentally-friendly choice.
  • Last over 50,000 hours! Up to 2.5 times longer life reduces maintenance costs.
    • 11 years (based on 12 hrs./day)

Comparable Look to Linear Fluorescent Bulbs, Exceptional Performance of LEDs

  • Turn on instantly to full brightness, no flickering.
  • Optimized general illumination - excellent light distribution, no wasted light inside the fixture.
  • Delivers comparable light levels to linear fluorescent.
  • Available in a variety of color temperatures - 3500K, 4000K and 5000K.
  • Glass tube has the familiar look of linear fluorescent bulbs.

Applications

  • Perfect for Commercial and Residential Applications.
  • Suitable for damp locations.
  • Approved for use in enclosed fixtures.





T5 LED Linear Types

  • Direct Install, no rewiring necessary
    • Use Direct Install T5 linear LEDs anywhere you would use a 46 inch T5 fluorescent.
    • Direct Install T5 linear LEDs are dimmable when used with an applicable ballast.
    • Replace F54T5HO linear fluorescent bulbs.


Item No.Bulb TypeBase TypeColorWatt

0378800 46 Inch Direct Install Mini BiPin Cool White (4000K) 22
*
3378800 46 Inch Direct Install Mini BiPin Cool White (4000K) 25
*
3378900 46 Inch Direct Install Mini BiPin Daylight (5000K) 25

*DLC Qualified


DesignLights Consortium™ (DLC). The DLC provides a platform for collaboration among energy efficiency program members to drive the lighting market toward quality and innovation by ensuring energy-efficient standards are continuously met.
Indoor Outdoor Damp location
No Mercury



T8 LED Linear Types

  • Direct Install, no rewiring necessary.
    • Use Direct Install T8 linear LEDs anywhere you would use a 48 or 96 inch T8 fluorescent.
  • Ballast Bypass T8 linear LED light bulbs require wiring.
    • Use Ballast Bypass T8 linear LEDs to replace 48 or 96 inch T8 and T12 fluorescent bulbs.
    • T8 Ballast Bypass operates with direct line voltage - no ballast needed.




24, 36 and 48 inch 96 inch




Item No.Bulb TypeBase TypeColorWatt
    * 5039000 24 Inch Direct Install Medium BiPin Cool White (3500K) 8
    * 5025000 24 Inch Direct Install Medium BiPin Cool White (4000K) 8
    * 5040000 24 Inch Direct Install Medium BiPin Daylight (5000K) 8
    * 5043000 24 Inch Ballast Bypass
Medium BiPin Cool White (3500K) 9
    * 5026000 24 Inch Ballast Bypass Medium BiPin Cool White (4000K) 9
    * 5044000 24 Inch Ballast Bypass Medium BiPin Daylight (5000K) 9
5041000 36 Inch Direct Install Medium BiPin Cool White (3500K) 10.5
5027000 36 Inch Direct Install Medium BiPin Cool White (4000K) 10.5
5042000 36 Inch Direct Install Medium BiPin Daylight (5000K) 10.5
5045000 36 Inch Ballast Bypass Medium BiPin Cool White (3500K) 12
5028000 36 Inch Ballast Bypass Medium BiPin Cool White (4000K) 12
5046000 36 Inch Ballast Bypass Medium BiPin Daylight (5000K) 12

    * 3385100 48 Inch Direct Install Medium BiPin Cool White (3500K) 11.5

    * 3373900 48 Inch Direct Install Medium BiPin Cool White (4000K) 11.5

    * 3385200 48 Inch Direct Install Medium BiPin Daylight (5000K) 11.5

    * 4365200 48 Inch Direct Install Medium BiPin Cool White (3500K) 15

    * 4365300 48 Inch Direct Install Medium BiPin Cool White (4000K) 15

    * 4365500 48 Inch Direct Install Medium BiPin Daylight (5000K) 15
    * 0386000 48 Inch Ballast Bypass
Medium BiPin Cool White (3500K) 15
    * 0386100 48 Inch Ballast Bypass Medium BiPin Cool White (4000K) 15
    * 0385400 48 Inch Ballast Bypass Medium BiPin Daylight (5000K) 15
    * 3365200 48 Inch Direct Install Medium BiPin Cool White (3500K) 17
    * 3366000 48 Inch Ballast Bypass Medium BiPin Cool White (3500K) 18
    * 3367200 48 Inch Ballast Bypass Medium BiPin Cool White (4000K) 18
    * 3367600 48 Inch Ballast Bypass Medium BiPin Daylight (5000K) 18

0365200 48 Inch Direct Install Medium BiPin Cool White (3500K) 22

0365500 48 Inch Direct Install Medium BiPin Daylight (5000K) 22

0404900 96 Inch Direct Install Single Pin Cool White (4000K) 33

0405000 96 Inch Direct Install Single Pin Daylight (5000K) 33

0405100 96 Inch Ballast Bypass Single Pin Cool White (4000K) 43

0405200 96 Inch Ballast Bypass Single Pin Daylight (5000K) 43

*DLC Qualified


DesignLights Consortium™ (DLC). The DLC provides a platform for collaboration among energy efficiency program members to drive the lighting market toward quality and innovation by ensuring energy-efficient standards are continuously met.
Indoor Outdoor Damp location
No Mercury



TLED Linear Lamps - Dual-End Powered

  • Ballast Bypass Dual-End Powered T8 linear LED light bulbs require wiring.
    • Use Ballast Bypass T8 dual-end powered LEDs to replace 4ft T8 and T12 fluorescent bulbs.
    • These bulbs operates with direct line voltage - no ballast needed.
    • Eliminate the need to install non-shunted tombstone sockets, saving time and labor costs.






Item No.Bulb TypeBase TypeColorWatt
    * 5031000 48 Inch Dual-End Powered Ballast Bypass
Medium BiPin Cool White (3500K) 17
    * 5032000
48 Inch Dual-End Powered Ballast Bypass Medium BiPin Cool White (4000K) 17
    * 5033000 48 Inch Dual-End Powered Ballast Bypass Medium BiPin Daylight (5000K) 17

*DLC Qualified


DesignLights Consortium™ (DLC). The DLC provides a platform for collaboration among energy efficiency program members to drive the lighting market toward quality and innovation by ensuring energy-efficient standards are continuously met.
Indoor Outdoor Damp location
No Mercury

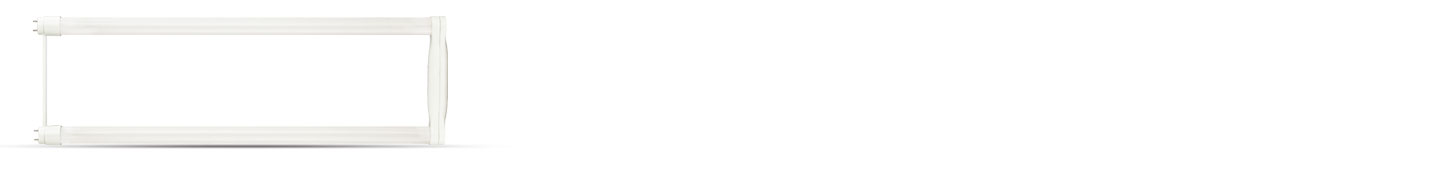

TLED T8 U-Bent Linear Types

  • Direct Install, no rewiring necessary.
    • Use direct install U-Bent TLEDs anywhere you would use a 23 inch T8 fluorescent U-Bent.
    • Direct Install U-Bent LEDs are dimmable when used with an applicable ballast.

  • Ballast Bypass U-Bent T8 linear LED light bulbs require wiring.
    • Use Ballast Bypass T8 U-Bent LEDs to replace 23 inch U-Bent fluorescent bulbs.
    • T8 U-Bent Ballast Bypass operates with direct line voltage - no ballast needed..


Item No.Bulb TypeBase TypeColorWatt
* 5035000 Direct Install U-Bent
Medium BiPin Cool White (3500K)
15
* 5029000 Direct Install U-Bent
Medium BiPin Cool White (4000K) 15
* 5036000 Direct Install U-Bent
Medium BiPin Daylight (5000K) 15
* 5037000 Ballast Bypass U-Bent
Medium BiPin Cool White (3500K) 18
* 5030000 Ballast Bypass U-Bent
Medium BiPin Cool White (4000K) 18
* 5038000 Ballast Bypass U-Bent
Medium BiPin Daylight (5000K) 18

*DLC Qualified


DesignLights Consortium™ (DLC). The DLC provides a platform for collaboration among energy efficiency program members to drive the lighting market toward quality and innovation by ensuring energy-efficient standards are continuously met.
Indoor Outdoor Damp location
No Mercury



TLED Educational Videos

In just a few minutes, learn more about these LEDs by watching our short videos.



4 ft T8 LED Direct Install Installation Overview Educational Video

  CLICK TO VIEW


4 ft T8 LED Ballast Bypass Installation Overview Educational Video


CLICK TO VIEW


4 ft TLED
Informational Video

CLICK TO VIEW





8 ft TLED Ballast Bypass
Installation Video


CLICK TO VIEW


8 ft TLED
Informational Video


CLICK TO VIEW
