Westinghouse Lighting - Lamp Catalog

43 / 52

HID Lamps contain mercury. For more on clean up and safe disposal, visit epa.gov/cfl.Hg
3 Low Profile
4 Universal Operating Position
Footnotes
1 New Item
2 For Probe Start or Pulse Start Ballasts
5 Specifications based on operating at a base up (BU) position

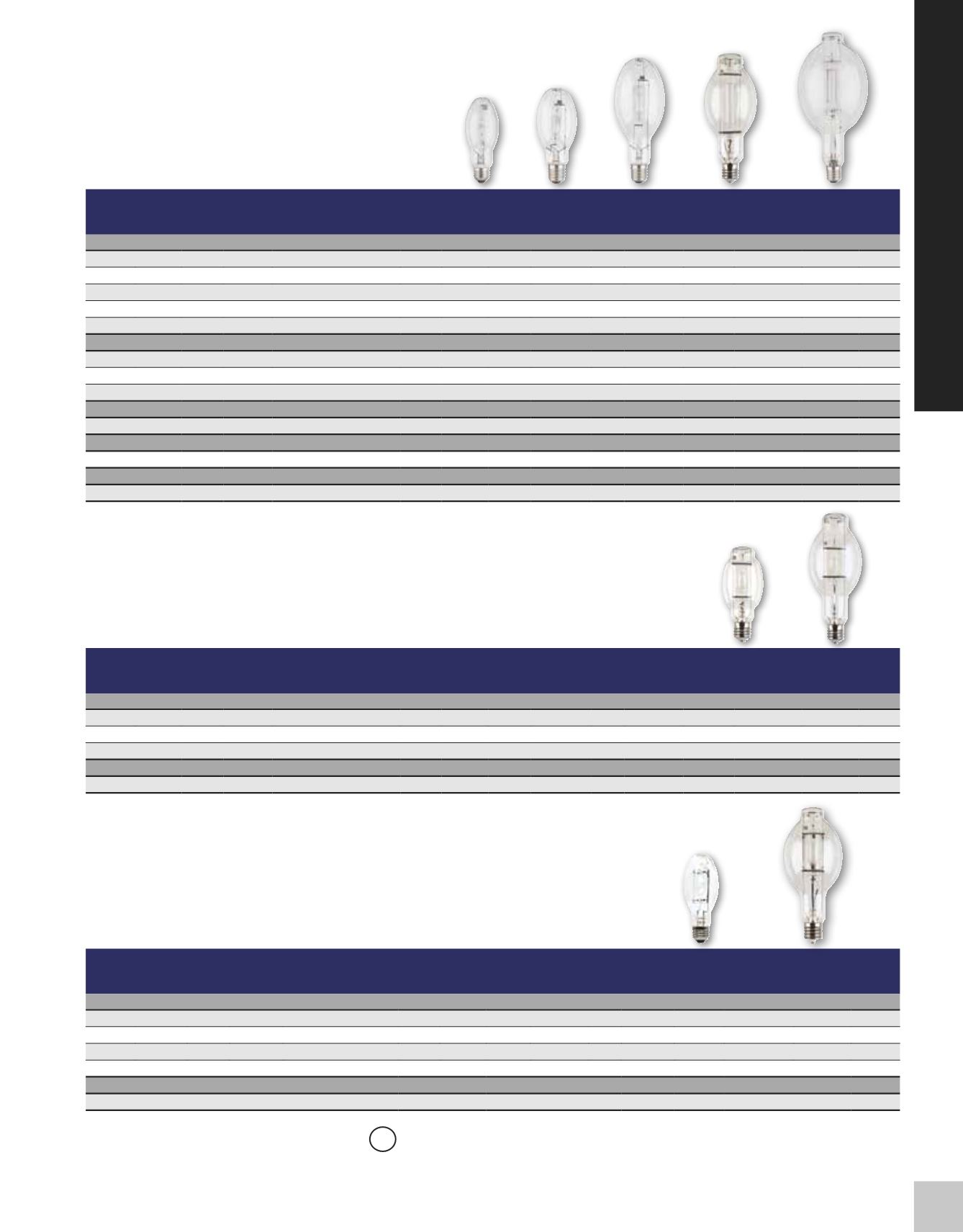

HID LAMPS
41
METAL HALIDE LAMPS
(FOR USE IN ENCLOSED FIXTURES)
Energy
Used
(Watts)
Lamp
Base
Item
No. Footnotes Domestic Code
Master
Carton
Package
Type Finish
Light
Appearance
(Kelvin) CRI
ANSI
Code
Avg.
Rated
Hours
Brightness
(Initial
Lumens)
Brightness
(Mean
Lumens) MOL
ED17
50 Med. 37016 2,4 MH50/U/M110/E/MED 6 Box Clear 4200 65 M110/E 10000 3400 2000 5.44"
70 Med. 37017 2,4 MH70/U/M98/E/MED 6 Box Clear 4200 65 M98/E 10000 5600 4400 5.44"
100 Med. 37018 2,4 MH100/U/M90/E/MED 6 Box Clear 4200 65 M90/E 10000 8500 5525 5.44"
150 Med. 37015 2,4 MH150/U/M102/E/MED 6 Box Clear 4200 60 M102/E 10000 9000 8000 5.44"
175 Med. 37019 4 MH175/U/M57/E/MED 6 Box Clear 4200 65 M57/E 10000 14400 11520 5.44"
ED28
175 Mogul 37020 4 MH175/U/M57/E 6 Box Clear 4200 65 M57/E 10000 14400 12800 8.31"
250 Mogul 37021 4 MH250/U/M58/E 6 Box Clear 4200 65 M58/E 10000 20500 17500 8.31"
400 Mogul 37014 3,4 MH400/U/M59/ED28/E 6 Box Clear 4000 60 M59/E 20000 36000 23500 8.31"
ED37
400 Mogul 37024 4 MH400/U/M59/E 6 Box Clear 4200 65 M59/E 20000 36000 23500 11.50"
BT37
1000 Mogul 37028 3,4 MH1000/U/M47/E/BT37 6 Box Clear 4200 65 M47/E 10000 110000 86000 11.50"
BT56
1000 Mogul 37027 4 MH1000/U/M47/E 6 Box Clear 4200 65 M47/E 10000 105000 80000 15.50"
ED17 BT37 ED28 ED37 BT56
Energy
Used
(Watts)
Lamp
Base
Item
No. Footnotes Domestic Code
Master
Carton
Package
Type Finish
Light
Appearance
(Kelvin) CRI ANSI Code
Avg.
Rated
Hours
Brightness
(Initial
Lumens)
Brightness
(Mean
Lumens) MOL
ED17
50 Med. 37009 2,4 MP50/U/M110/O/MED 6 Box Clear 3000 60 M110/O 10000 3450 1900 5.44"
70 Med. 37010 2,4 MP70/U/M98/O/MED 6 Box Clear 3000 60 M98/O 10000 5600 4480 5.44"
100 Med. 37011 2,4 MP100/U/M90/O/MED 6 Box Clear 3000 60 M90/O 10000 8000 5525 5.44"
150 Med. 37013 2,4 MP150/U/M102/O/MED 6 Box Clear 4200 60 M102/O 10000 12250 8500 5.44"
BT37
400 Ext. Mogul 37022 5 MP400/BU/M59/O 12 Box Clear 4200 65 M59/O 20000 36000 23500 11.50"
METAL HALIDE PROTECTED LAMPS
(OPEN FIXTURE RATED)
PROTECTED
ED17
PROTECTED
BT37
METAL HALIDE PULSE START LAMPS
(FOR USE IN ENCLOSED FIXTURES)
Energy
Used
(Watts)
Lamp
Base
Item
No. Footnotes Domestic Code
Master
Carton
Package
Type Finish
Light
Appearance
(Kelvin) CRI
ANSI
Code
Avg.
Rated
Hours
Brightness
(Initial
Lumens)
Brightness
(Mean
Lumens) MOL
BT28
250 Mogul 37031 4 MH250/U/M138/E/PS 6 Box Clear 4200 65 M138/M153/E 15000 25000 20000 8.25"
320 Mogul 37032 4 MH320/U/M132/E/PS 12 Box Clear 4200 65 M132/M154/E 20000 33000 26400 9.00"
400 Mogul 37025 3,4 MH400/U/M135/155/BT28/PS 6 Box Clear 4200 65 M135/M155/E 20000 36000 23500 8.31"
BT37
400 Mogul 37036 4 MH400/U/M135/155/E/PS 12 Box Clear 4200 65 M135/M155/E 20000 44000 35200 11.50"
BT28
PULSE
START
BT3
PULSE
START
