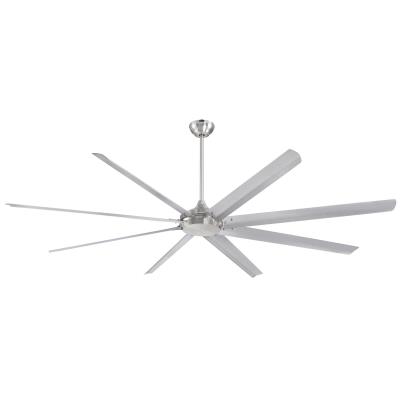

Widespan 100-Inch Indoor Ceiling Fan, DC Motor

Widespan 100-Inch Indoor Ceiling Fan, DC Motor

Brushed Nickel Finish with Aluminum Blades, Remote Control Included


No.7224900
Blade MaterialAluminum
Fan Width (inches)100
Primary Blade FinishAluminum
Blade Pitch (in degrees)12
MotorDC Motor 165mm x 30mm
Mount TypeDown Rod Only
Lead Wire Length (inches)30
A) Top of Canopy to Bottom of Blade (inches)33
C) Top of Canopy to Bottom of Canopy (inches)3
D) Width of Motor Housing (inches)11.75
E) Width of Canopy (inches)7.50
RPM (High)75
Amp (High)1.55
ETLY
Blade Length (inches)46.46
Fan Blade Width (inches)4.72
Indoor/OutdoorIndoor

The Indoor Widespan 100-Inch HVLS Industrial Ceiling Fan is expertly designed to enhance air circulation in expansive spaces, making it ideal for warehouses, gymnasiums, and high-ceiling rooms. Features include an energy-efficient DC motor, convenient multi-functional remote control, and a damp-rating. With its sleek brushed nickel finish and eight durable aluminum blades, this fan not only performs efficiently but adds a modern touch to any large indoor environment.

Product reference number 72249.

What's Included

Ceiling fan, 24-inch down rod, remote control, installation instructions and mounting hardware.



FEATURES & BENEFITS
  • Widespan 100-inch indoor ceiling fan excels in industrial applications, providing optimal airflow and efficiency for large spaces

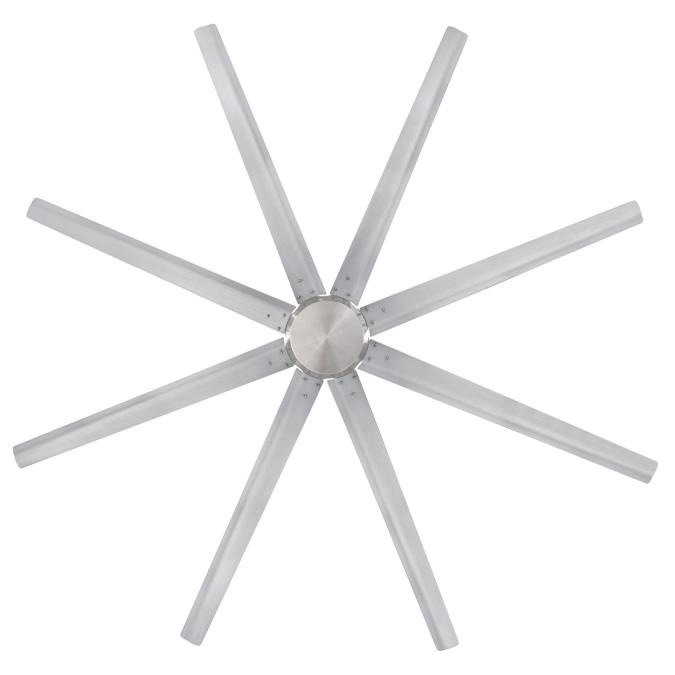

  • Eight aluminum blades complement the industrial ceiling fan design and brushed nickel fan finish

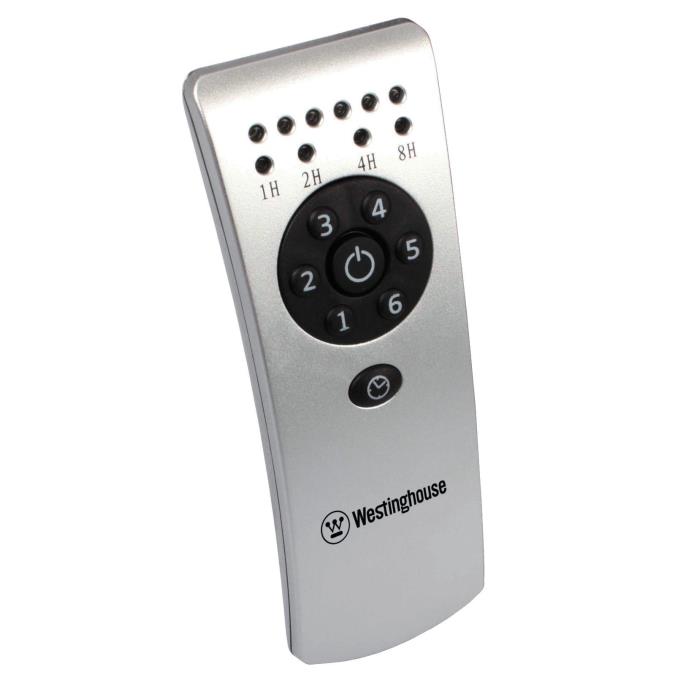

  • User-friendly remote control operates six fan speed settings, seasonal directional control, multiple timer options, and a speed memory function
APPLICATIONS

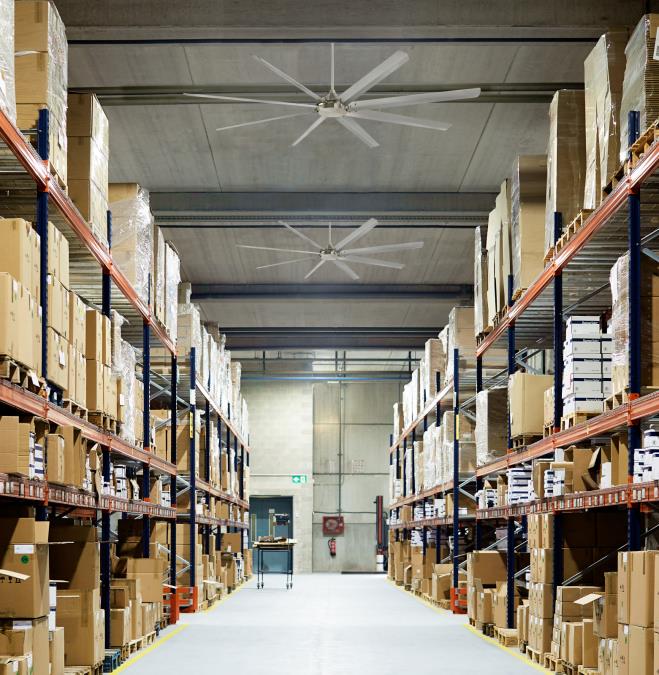

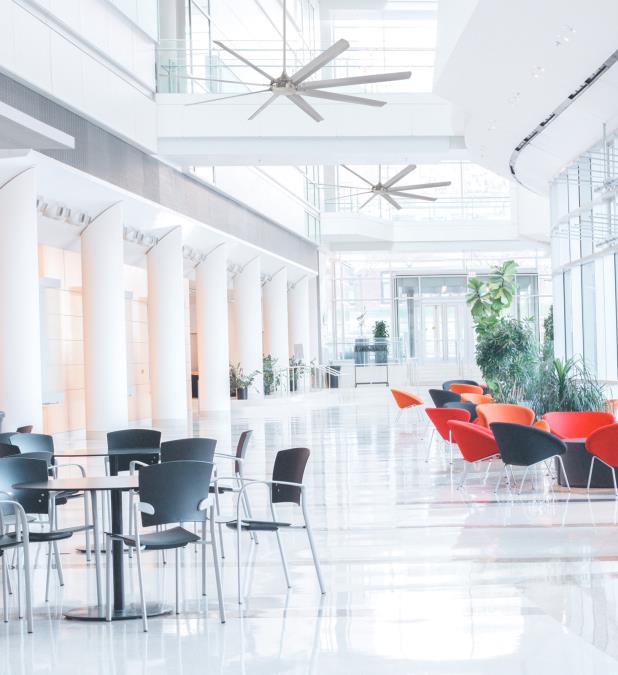

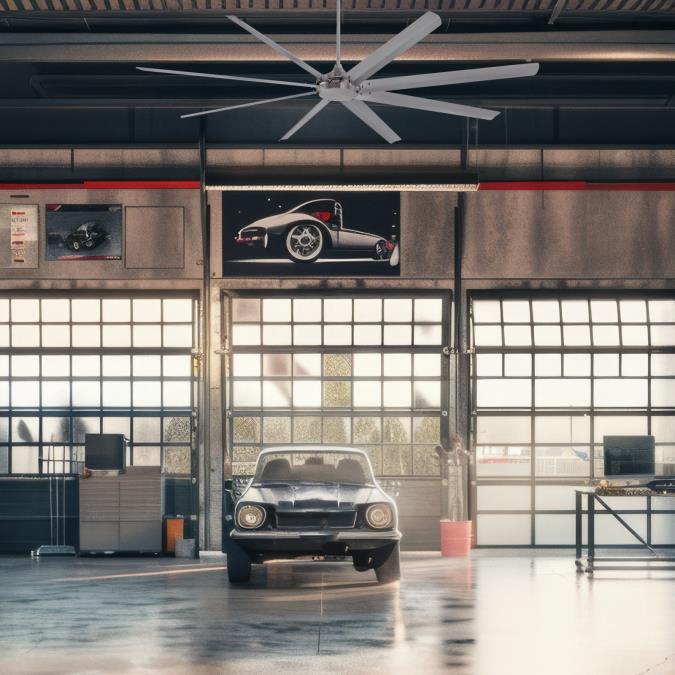

  • Big fans are perfect for large commercial spaces such as warehouses and gymnasiums

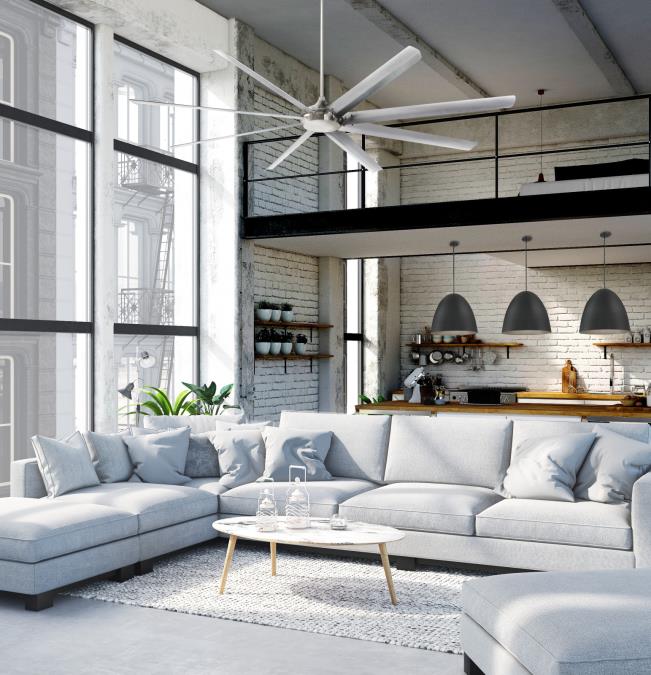

  • Ideal for storage facilities, workshops, and high-ceiling spaces greater than 10 feet
EFFICIENCY
  • The high-performance DC motor delivers outstanding efficiency and operates quietly, ensuring optimal air circulation.
  • It provides year-round comfort while significantly lowering operating costs, achieving a 62% increase in energy efficiency compared to traditional AC motor fans.

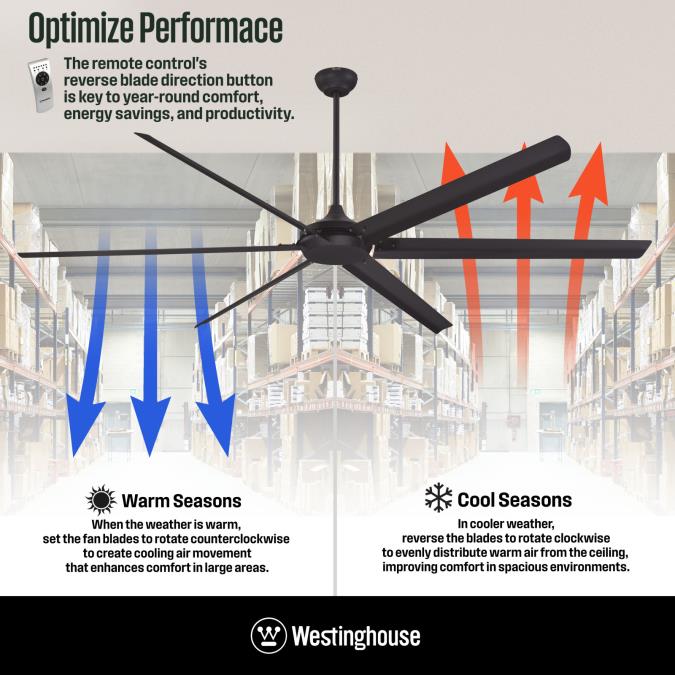

  • The high volume, low speed (HVLS) industrial ceiling fan improves comfort in both summer and winter, while also reducing energy expenses.
INSTALLATION
  • Fan must be mounted directly to the building structure, not installed with a standard ceiling fan box
  • For safe operation and optimal performance fan must be mounted with the blades at least 10 feet above the floor
  • Ideal for spaces over 400 square feet
  • Designed for down rod installation only
WARRANTY
  • 15-year limited warranty on motor
  • Two-year warranty on all other parts
