40-Watt (8-Foot) T8 Dimmable Ballast Bypass Linear LED Light Bulb

40-Watt (8-Foot) T8 Dimmable Ballast Bypass Linear LED Light Bulb

4000K Cool White Light Single Pin Base, 120-277 Volt, Bulk


No.3405100
Domestic CodeLED 40T8/96"/DIM/40 Ballast Bypass
Lamp ShapeT8
Energy Used (Watts)40

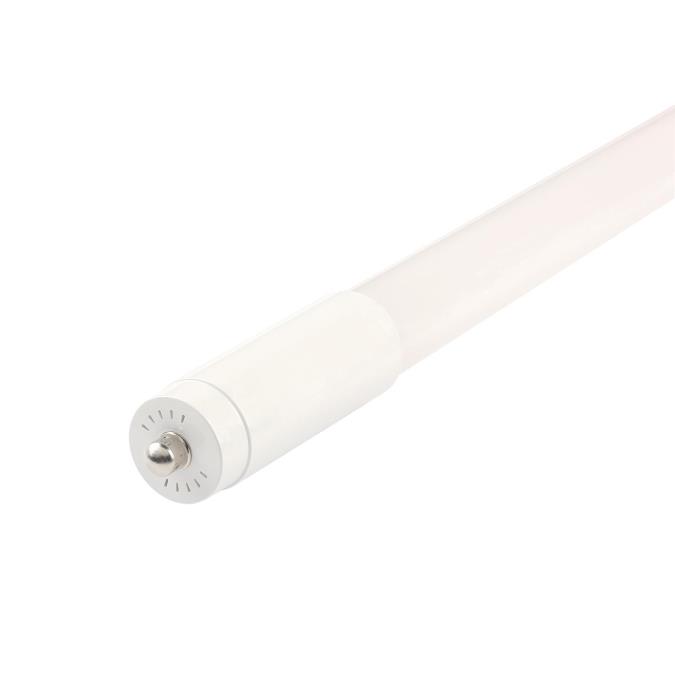

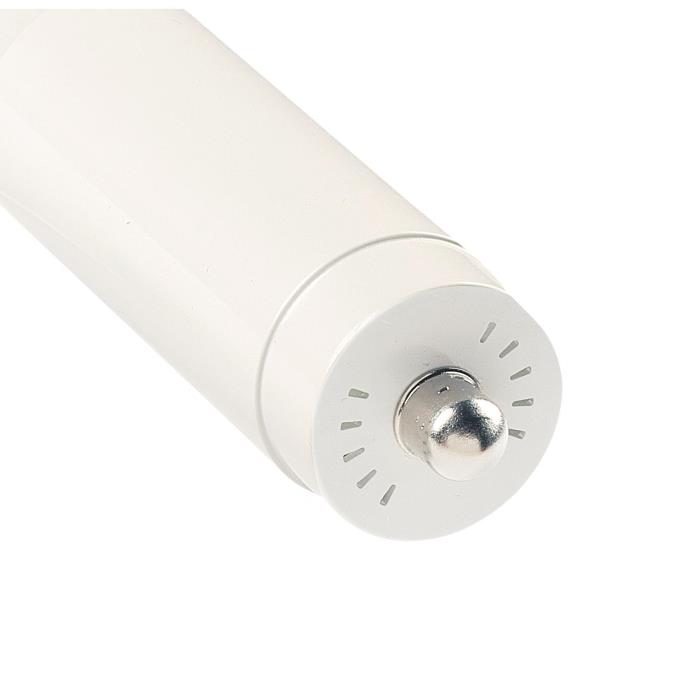

Lamp BaseSingle Pin
Volts120-277
Color Temperature (Kelvin)4000
CRI83
Life (Hours)50000
Brightness (Lumens)5500
Max. Overall Length (MOL)96
Approved DampY
DLC QualifiedY
For Use in Total Enclosed Fixt.Y
Beam Spread210
Life (Years)*45.6
Estimated Yearly Energy Cost**4.82


 * Based on 3 hrs./day
** Based on 3 hrs./day $.11/kWh
   Cost depends on rates and use.

Westinghouse T8 (40 Watt) Cool White (4000K) Single-Pin Base Dimmable LED Linear Light Bulb 34051

Use the ballast bypass 40-watt linear LED in place of any 8-foot T8 or T12 fluorescent bulb. This ballast bypass LED operates with direct line voltage. Knowledge of fluorescent lighting fixtures and electrical systems required for ballast bypass wiring.

Technological advancements allow for optimized general illumination and excellent light distribution. Light is focused downwards where needed, eliminating unsightly shadows and dark spots in the light fixture. Enjoy energy-efficient illumination for everyday tasks in retail, industrial, and commercial applications.

Providing brightness and color quality comparable to fluorescent bulbs, this ballast bypass LED turns on instantly without flickering and lasts up to 2.5 times longer. It reduces maintenance costs and provides up to 40% energy savings over linear fluorescents.

This LED tube light includes a built-in safety feature to power off permanently and avoid unexpected damage to the bulb or fixture in case of improper installation.

Westinghouse is a trusted global brand. We know lighting and offer products with quality, reliability, and functionality.



FEATURES & BENEFITS
  • Energy-efficient T8 LED tube light offers lifetime cost savings compared to fluorescent bulbs
  • Provides excellent light distribution and familiar look of fluorescent tubes
  • Optimized general illumination - no wasted light inside the fixture
  • Quality components ensure optimum lumen output over the bulb's lifetime
  • Mercury-free TLEDs lower disposal costs, an environmentally-friendly choice
RECOMMENDED USES
  • LED replacement for fluorescent tubes, 8-foot T8 or T12

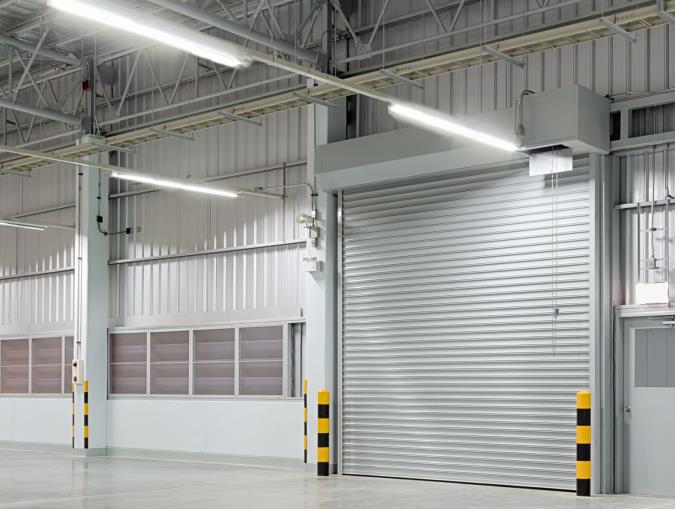

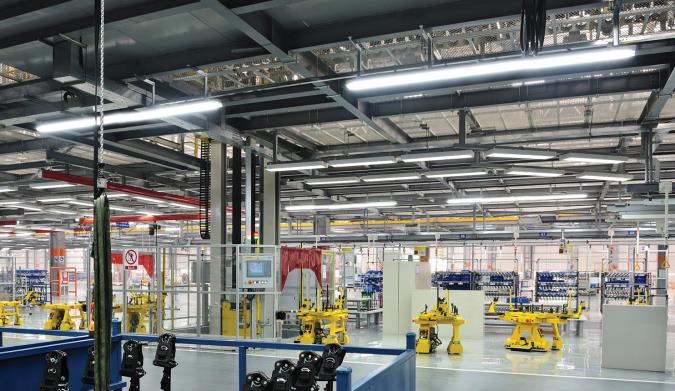

  • Industrial applications
  • Commercial applications
DIMENSIONS
  • 96 inches (L)
  • 1 inch (D)
INSTALLATION
  • Ballast bypass wiring requires knowledge of fluorescent lighting fixtures and electrical systems
  • Ballast Bypass bulb operates with direct line voltage between 120V and 277V
  • No ballast needed
  • Rated for indoor use
  • Compatible with all T8 and T12 fixture
  • Suitable for damp locations
  • Approved for use in totally enclosed fixtures
  • UL Classified, DLC qualified
  • Compatible with dimmer 502606930 (sold separately)
