54 Watt (320 Watt HID Equivalent) ED32 High Lumen Filament LED Light Bulb

54 Watt (320 Watt HID Equivalent) ED32 High Lumen Filament LED Light Bulb

5000K Daylight EX39 (Mogul) Base, 120-277 Volt, Box

Domestic Code54ED32/FilamentLED/CL/120-277V/EX39/50
Lamp ShapeED32
Energy Used (Watts)54
Lamp BaseEX39
Color Temperature (Kelvin)5000
Life (Hours)50000
Brightness (Lumens)10000
Max. Overall Length (MOL)9.45
Approved WetY
DLC QualifiedY
For Use in Total Enclosed Fixt.Y
Beam TypeOMNI Directional
Beam Spread330
Life (Years)*45.6
Estimated Yearly Energy Cost**6.50

 * Based on 3 hrs./day
** Based on 3 hrs./day $.11/kWh
   Cost depends on rates and use.

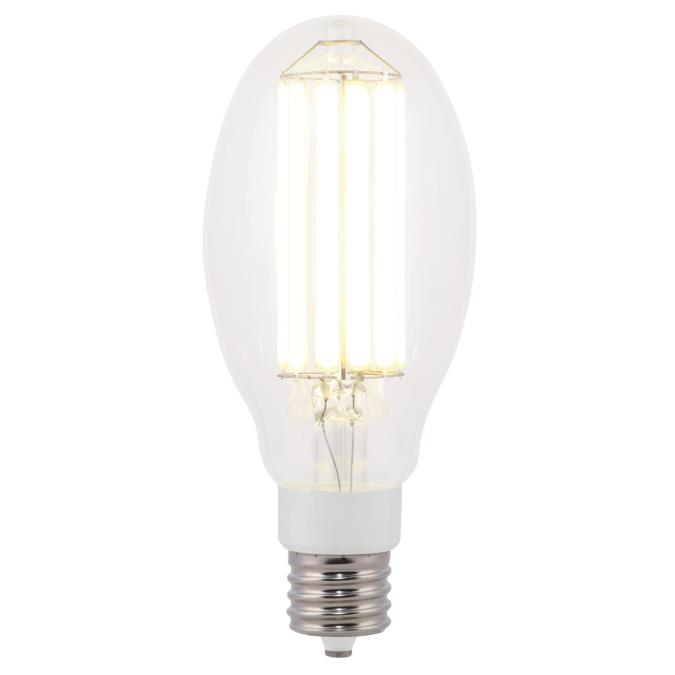

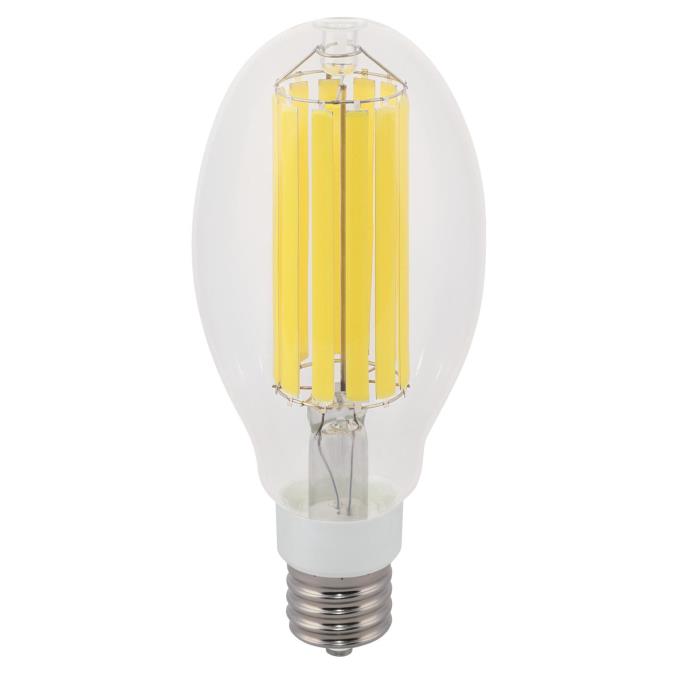

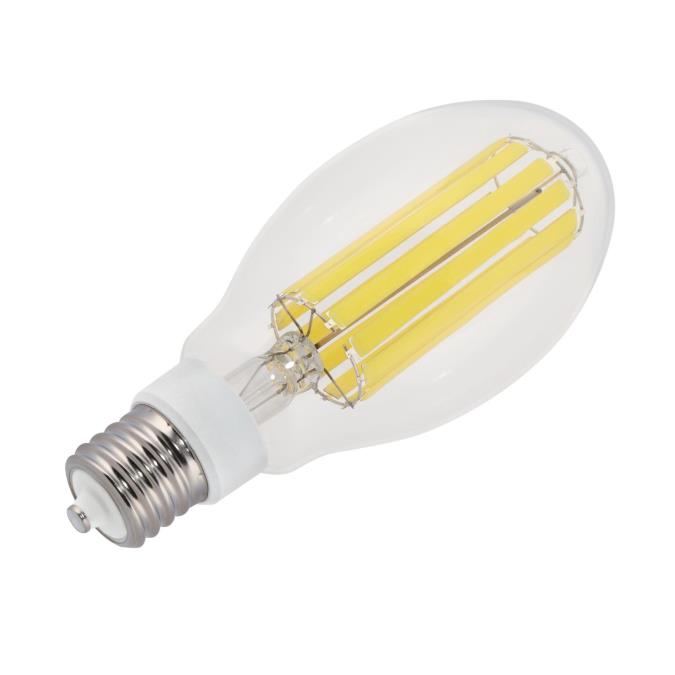

Westinghouse ED32 (54 Watt) Daylight (5000K) EX39 (Mogul) Base Clear Filament LED Light Bulb 52690

The ED32 filament LED bulb is the perfect energy-efficient replacement for 320-watt HID bulbs and an excellent alternative to corn cob LED bulbs. The reliable LED bulb's bright light is perfect for indoor and outdoor fixtures such as post-top lanterns and wall pack lighting. It features universal mounting positions, a 120 - 277 volts voltage range, and built-in surge protection.

This high-lumen LED bulb can be used for geographical areas affected by voltage fluctuations and withstand momentary surges up to 4000 volts in industrial installations. The 5000K LED light bulb turns on instantly and maintains higher light output over its lifetime than HID bulbs.

A significant advantage of LED over HID is that there is no color shifting, so the color temperature will remain constant over time.

  • Energy-efficient 54-watt ED32 LED offers lifetime cost savings compared to 320-watt HID and 135-watt CFL bulbs
  • Lighter weight than corn cob LED bulbs with a smaller diameter, require little maintenance, and fit perfectly into existing fixtures
  • Built-in surge protection to withstand surges up to 4000 volts
  • Quality components ensure optimum lumen output over the bulb's lifetime
  • Long-lasting LED, fewer bulb changes
  • Free of harmful mercury
  • EX39 mogul base E39 or EX39 socketed fixtures
  • Energy-efficient, ballast bypass replacement for 320 Watt HID bulbs
  • Alternative to high-lumen corn cob LED bulbs
  • Replace HID bulbs that operate on 277V building mains (must remove transformer or ballast)
  • Areas where voltage fluctuations may occur
  • Open-rated fixtures and enclosed-rated fixtures where HIDs are typically used

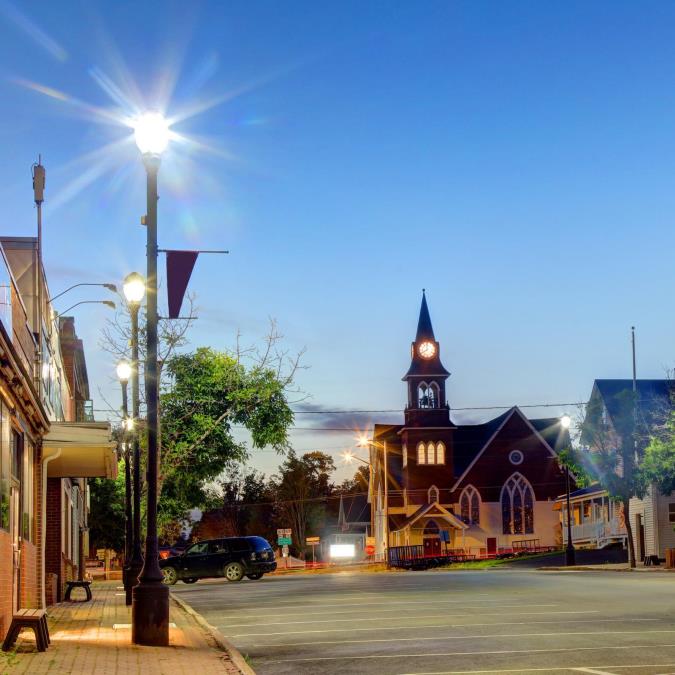

  • Outdoor post-top lanterns
  • Wall pack lighting
  • Street lights
  • Parking structures

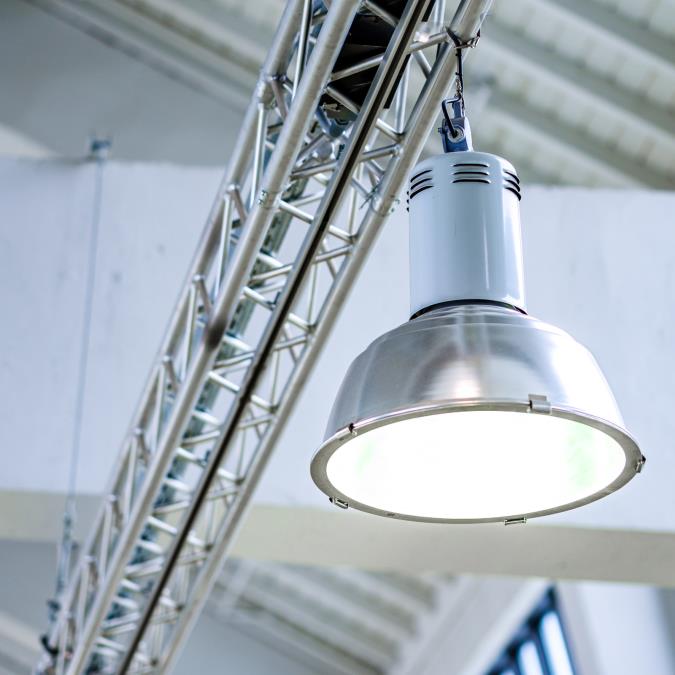

  • Warehouses
  • 9-1/2 inches (L)
  • 4 inches (D)
  • ED32 LED bulb features universal mounting position, install base up, base down, or horizontal
  • Works in fixtures with E39 or EX39 sockets
  • Operates with direct line voltage between 120V and 277V
  • Rated for indoor/outdoor use
  • IP65 rating for protection against dust and water jets
  • Approved for use in wet locations
  • Can be used in totally enclosed fixtures
  • Ballast must be bypassed for HID
