Fan Master Jr. Support Box, 13.4-Cubic-Inch Wire Capacity

Fan Master Jr. Support Box, 13.4-Cubic-Inch Wire Capacity

Get the Wiring Space You Need... Where you Need it!


No.0252511
TypeSupport Box
Assembled Height4
Assembled Width4
Assembled Depth4
ULY
CULY
US Patent No.5762223

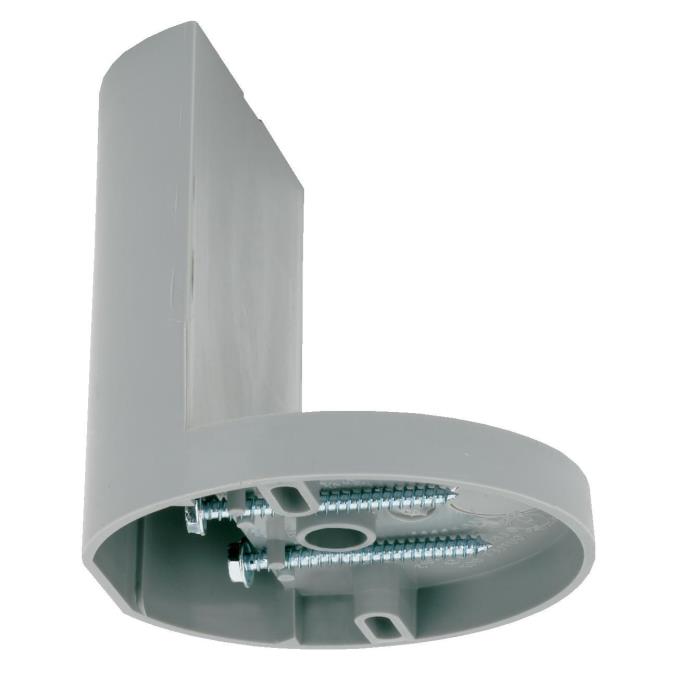

The Fan Master Jr. non-metallic support box allows you to safely attach a lighting fixture or ceiling fan to a building's structural support, so the ceiling fan is supported by the joist, not the box. The Fan Master Jr. design provides additional wiring space in one place, on the side, so all of the fan or fixture wiring will fit inside the box without having to split wires due to limited space. You can install the Fan Master Jr. on standard joists as well as wider joist configurations where a saddle style box will not fit. Perfect for new construction, the Fan Master Jr. can be used in applications where duct work or wiring is present. UL listed for fixture support of 150 pounds or less and fan support of 70 pounds or less. Fan Master Jr. has a two-hour fire rating.

What's Included

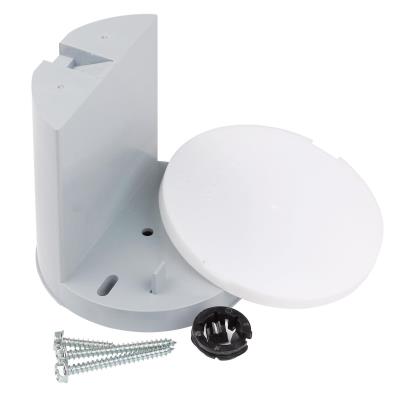

Fan Master Jr., which include electrical box, Saf-T-Cap, mounting hardware, Romex connector, Romex connector, and instructions.

Product reference number 02525



FEATURES & BENEFITS
  • Wiring capacity on one side, no need to split wiring, box can be mounted to either side of a ceiling joist
  • Design allows secure installation to one side of standard ceiling joists as well as wider joist configurations where a saddle style box will not fit
  • Includes Saf-T-Cap to protect inner workings during drywall installation or painting
RECOMMENDED USES

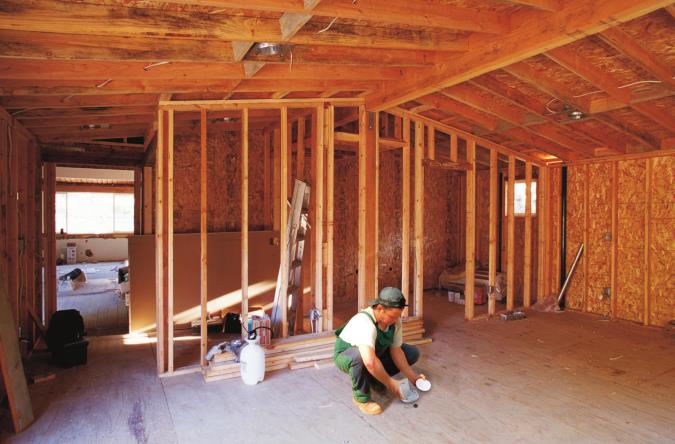

  • Use in new construction for ceiling fans of any style
  • Apply where duct work or wiring is present
  • Supports fans up to 70 pounds
  • Supports lighting fixtures up to 150 pounds
DIMENSIONS
  • Height: 4 inches
  • Depth: 1/2 inch
  • Wiring capacity: 13.4 cubic-inches
INSTALLATION
  • Attaches directly to building structure
  • Two knockouts for conduit or Romex; one Romex clamp
  • Includes one Romex connector
  • Two-hour fire rating
How to Buy

Can be purchased through many online and retail stores.
